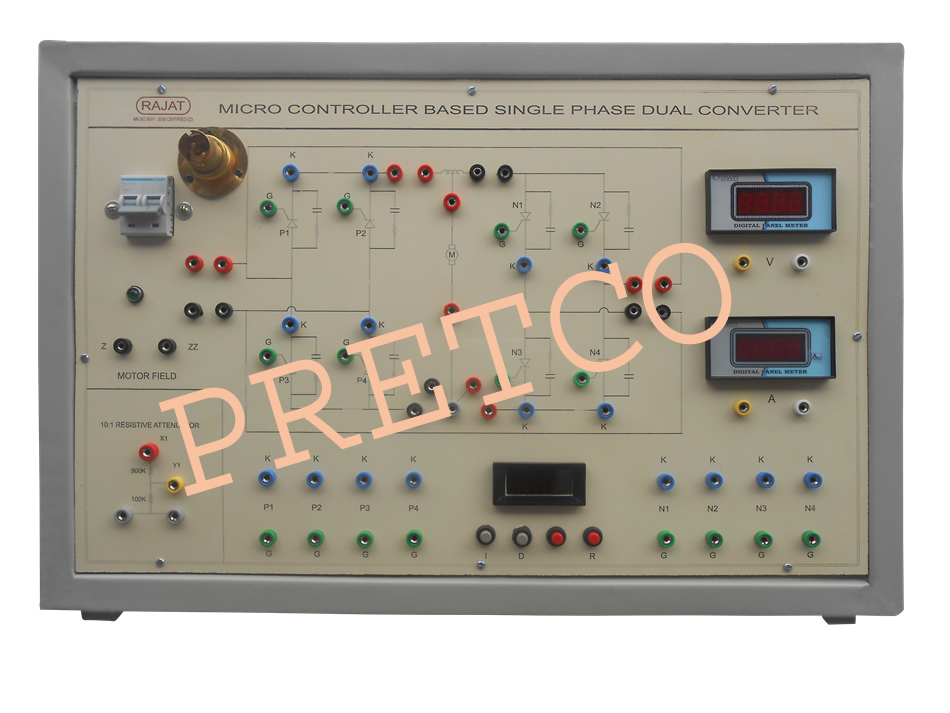

Micro Controller Based Single Phase Dual Converter

Description

The experimental setup consists of following main components :-

 Power Circuit consisting of two single phase fully controlled Bridge Converter connected in anti parallel.
 Centre Tap Inductor required for circulating mode operation of dual converter.
 Micro controlled based firing circuit which generates firing pulses for both P and N converters for Precise Control.
 MCB
 Voltmeter,
 Ammeter
 Lamp load for Short Circuit protection.
 SCR – 08 Nos.
 Firing Angle Display
 Step Down Transformer Firing Circuit
 1:1 Pulse Transformer
 Pulse Output Terminal
 Power Circuit Terminal
 Patch Cord
 Instruction Manual
 DC Motor 1 HP, 230V
